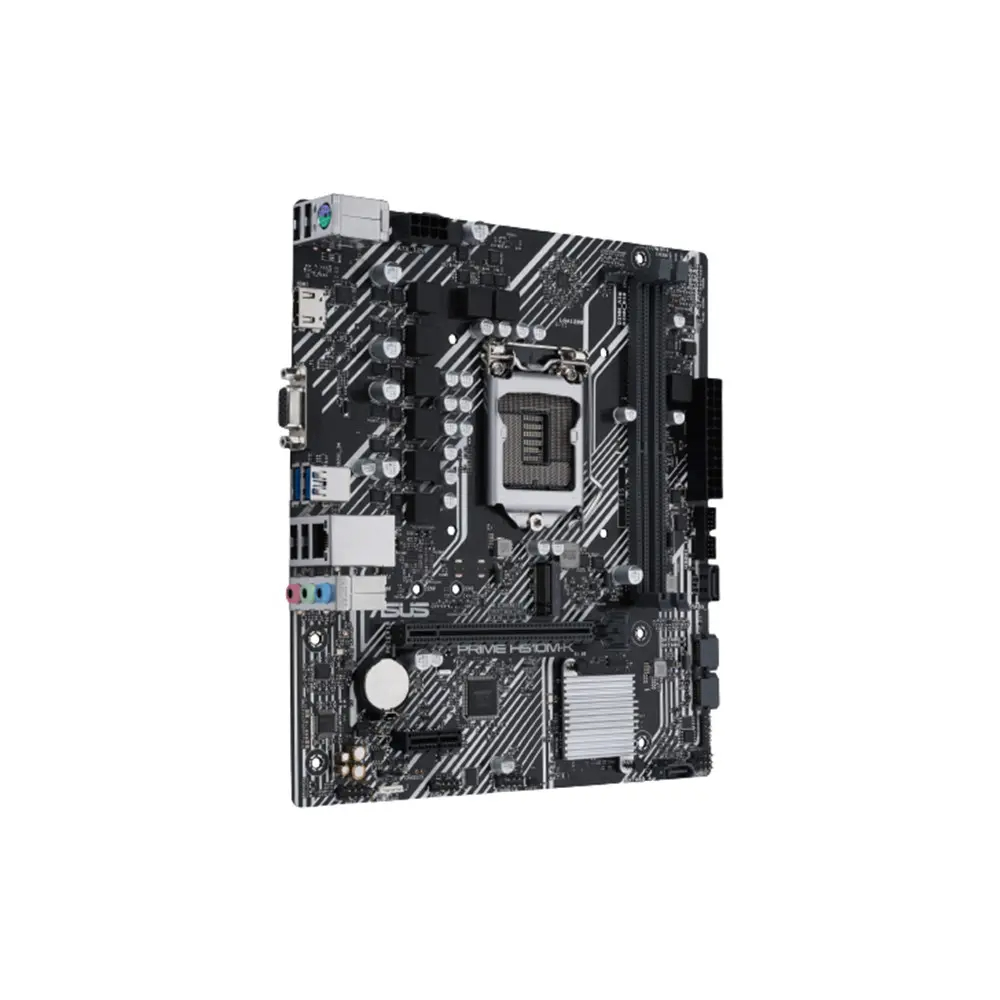

Asus H510M-K PCIe 4.0 32Gbps Gen 1 Micro ATX Motherboard

Name: Asus H510M-K PCIe 4.0 32Gbps Gen 1 Micro ATX Motherboard
Brand: Asus
SKU: 16157
Price: 40250 PKR
Availability: InStock

Intel® LGA 1200 Socket:
Ready for 11th and 10th Gen Intel® Processors

Ultrafast Connectivity:
PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 1

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

₨ 40,250

Add to compare

Add to wishlist

19 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

OVERVIEW:
Intel® LGA 1200 Socket:
Ready for 11th and 10th Gen Intel® Processors

Ultrafast Connectivity:
PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 1

Comprehensive Cooling:
PCH Heatsink and Fan Xpert

5X Protection III:
Multiple hardware safeguards for all-round protection

Build
Operating System	Windows 10 64bit
General Specification
Audio	Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback”Audio Features- Audio Shielding- Dedicated audio PCB layers A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Chipset	H510
CPU	Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsSupports Intel® 14 nm CPUSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0* Refer to www.asus.com for CPU support list. Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Ethernet	1 x Intel® 1Gb Ethernet ASUS LANGuard
Expansion Slots	Intel® 11th & 10th Gen Processors1 x PCIe 4.0/3.0 x16 slot- Intel® 11th Gen processors support PCIe 4.0 x16- Intel® 10th Gen processors support PCIe 3.0 x16Intel® H510 Chipset1 x PCIe 3.0 x1 slot
Form Factor	microATX 22.6cm x 20.3cm
Graphics	* Graphics specifications may vary between CPU types. ** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Memory	DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered MemoryDual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP) 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Type	PCIe 4.0 32Gbps Gen 1 Micro ATX Motherboard
USB	Rear USB:Total 6 ports2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Storage	Supports 1 x M.2 slot and 4 x SATA 6Gb/s portsIntel® H510 ChipsetM.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)4 x SATA 6Gb/s ports* The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.
